Add ultrasonic cavitation to an existing or custom tank

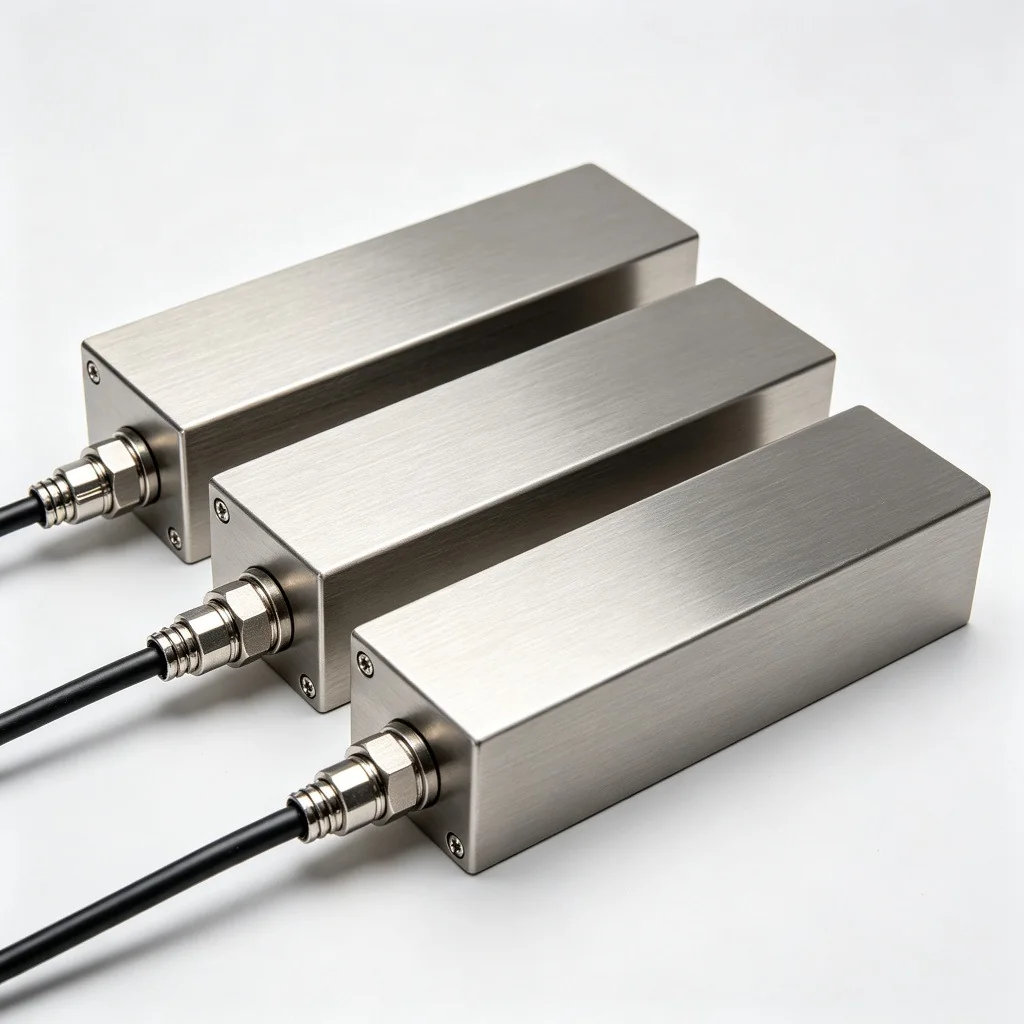

The immersible vibration plate is a sealed stainless box with bonded transducers and a waterproof cable to an external generator. One or more modules can be installed on a tank bottom or wall, hung from the rim or flange-mounted without replacing the existing vessel.
Retrofit tanks, large or non-standard vessels, multi-stage lines and OEM equipment that need modular or multi-face ultrasonic coverage.
ModelsLJ-P600 / P1000 / P1200 / custom
Frequency20 / 28 / 40 / 60 / 80 KHz
CapacityPlate count calculated from tank volume and depth
Review the construction, controls and process options available for this equipment.
01
Immersible Plate
Construction
01
Pressure-tested stainless enclosure
The 2.5 mm welded SUS304 housing is sealed for submerged service; SUS316 is optional.
02
High-Q piezoelectric transducers
Bonded elements drive the radiating face for efficient cavitation.
03
Waterproof external connection
A sealed flexible cable keeps the matching generator outside the tank.
04
Multiple mounting methods
Rim hangers, side or bottom brackets, flange and quick fittings suit different vessels.
05
Auto-tracking generator
Sweep, soft start and 10-100% adjustable power are provided by the external generator.
06
Modular multi-face layout
Multiple plates can cover the bottom and sides of a large or deep bath.
Model
Module Power
Available Frequency
Typical Plate Size
Use
LJ-P600
600 W
20/28/40/60/80 KHz
Approx. 400 x 300 x 100 mm
Standard building block
LJ-P1000
1000 W
20/28/40 KHz
Approx. 500 x 400 x 100 mm
Larger coverage
LJ-P1200
1200 W
20/28 KHz
Approx. 600 x 400 x 100 mm
Heavy-duty bottom plate
Custom
By design
Single or multi-frequency
To tank drawing
Special tanks and lines
The plate count and position are calculated from tank volume, depth and target watts per litre. A typical industrial-degreasing design target is 8-12 W/L.
