Heated batch tanks and special-process machines for focused industrial cleaning tasks.
Move the pointer over the main image to inspect details.
Industrial Single-Tank & Special Cleaners
Single-Tank Ultrasonic Cleaning Machine (Only Cleaning / Cleaning with Filtration)
Only Cleaning and Cleaning with Filtration
Two single-tank configurations are available. The only-cleaning version provides timed ultrasonic cleaning and adjustable heating, while the filtration version adds circulating filtration, a reusable stainless-steel filter and oil-water separation.
Suitable for small machined parts and molds, automotive parts, electronics, glassware and batches with oil or particle loading.
High-power 60 W transducers provide strong cleaning; 40 KHz or other customized requirements are available.
02
1-99 minute digital timer
Cleaning time is adjustable for unattended timed operation.
03
0-99 degrees C heating
Electric heating is included as standard.
04
Selectable frequency and power
20 / 28 / 40 / 60 / 80 KHz options with adjustable power output.
05
Thickened SUS304 construction
Corrosion-resistant stainless steel is easy to clean.
06
Stainless-steel drain valve
Corrosion-resistant, high-flow drainage with adjustable output.
07
Low-level alarm
Automatically cuts off the heating system and water pump when the liquid level is low.
08
Lockable casters
Floor-standing machines can be moved or fixed in position.
09
Digital display control
Adjustable power with real-time current and frequency display.
02
Cleaning with Filtration

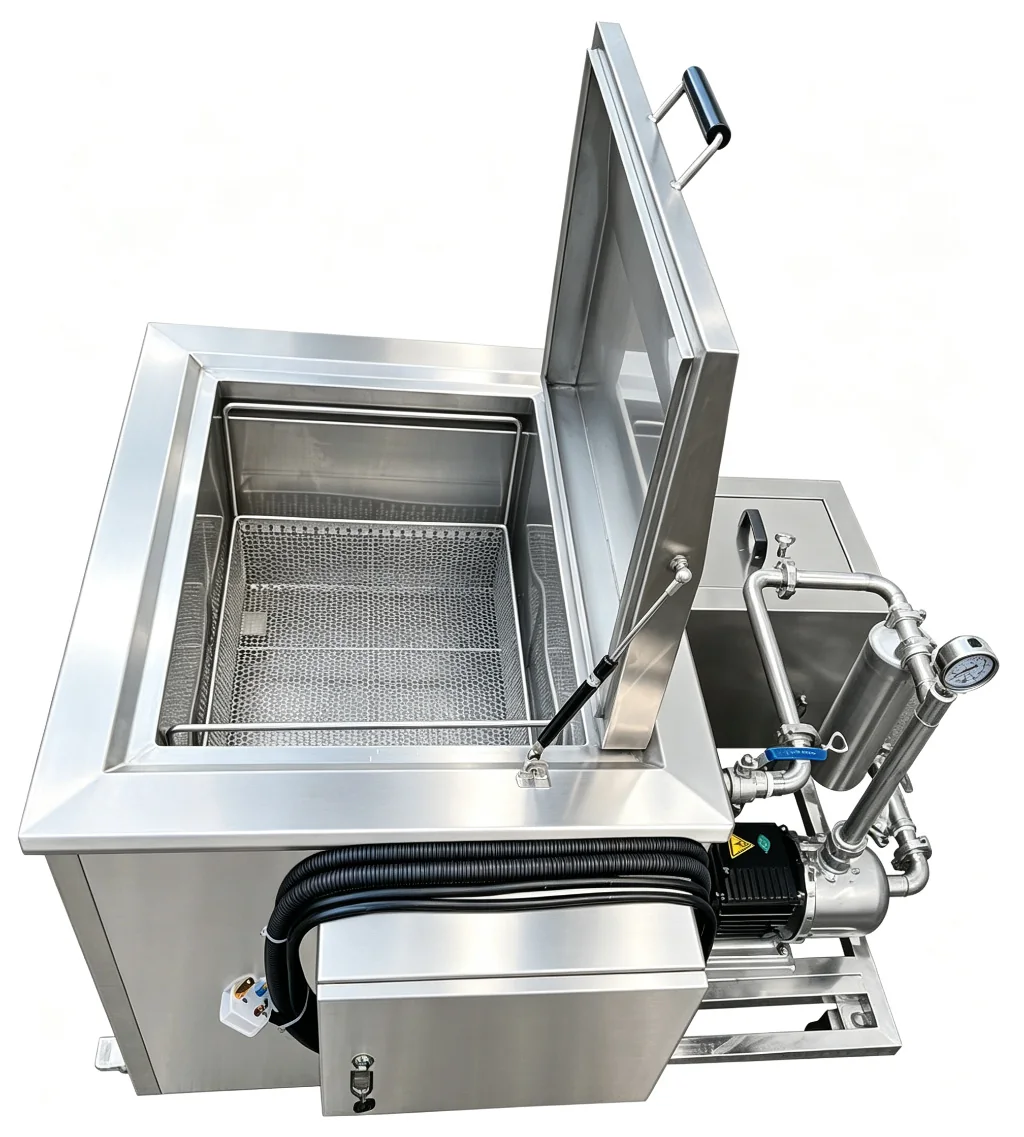

Single-Tank Ultrasonic Cleaning Machine (Cleaning with Filtration)
01

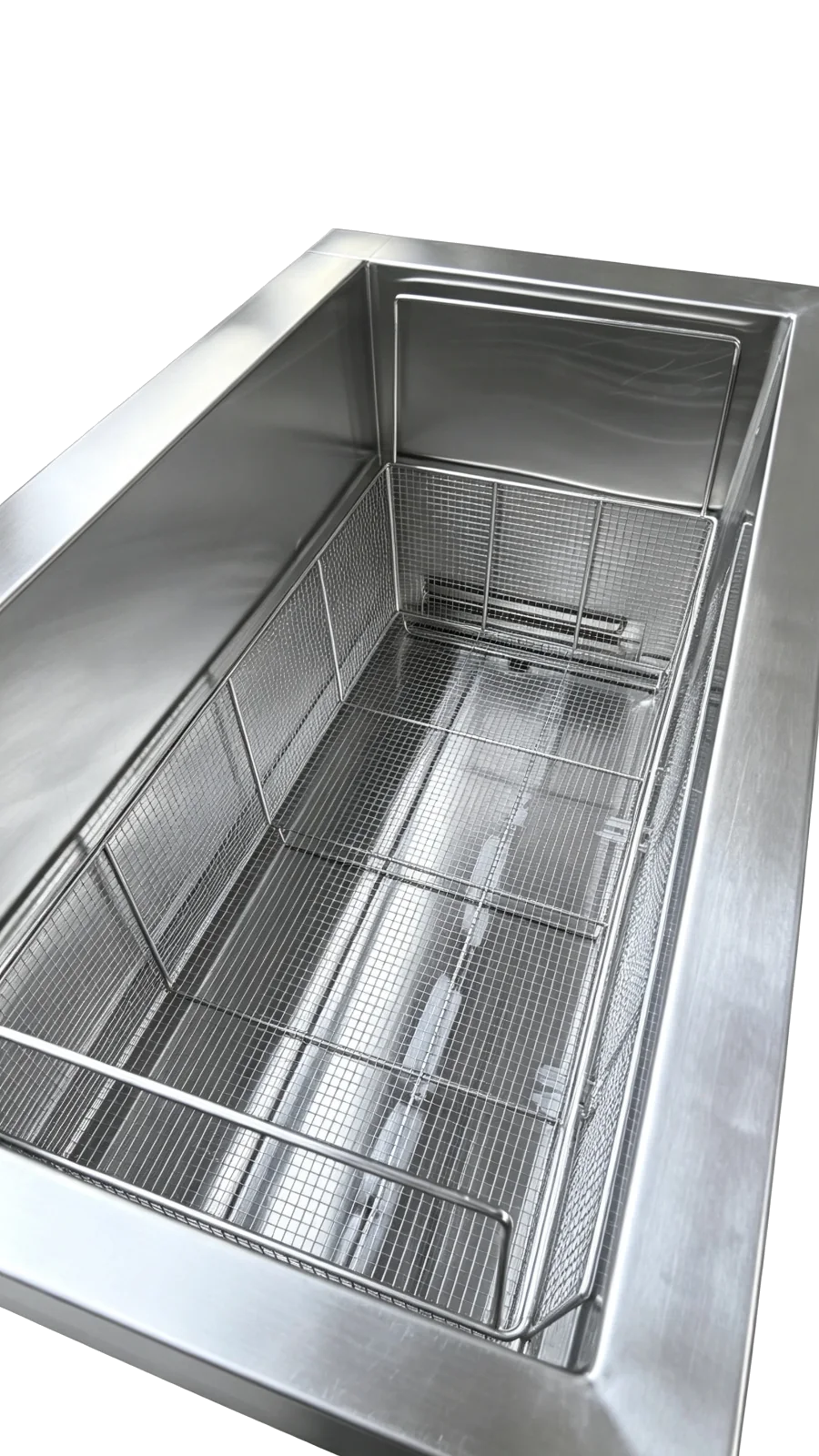

304 double-welded tank
A 2.5 mm SUS304 tank, welded inside and outside, with a smooth and easy-to-clean surface.
02
Stainless circulating filtration system
An auxiliary filter tank and high-power booster pump continuously circulate and filter the cleaning liquid.
03
High-flow reusable filter
The stainless-steel filter cartridge can be reused, reducing filter-media replacement.
04
Power spray nozzle
A row of small return-water outlets produces a strong flow to remove floating surface oil.
05
Smart timer
The machine stops automatically at the set time for unattended operation.
06
Circulating filtration and oil-water separation
The filtration configuration separates oil from the cleaning liquid while maintaining circulation.
07
Heating and constant temperature
Built-in electric heating is adjustable and maintains the selected temperature.
Model
Frequency
Ultrasonic Power
Heating Power
Inner Tank L x W x H (mm)
Capacity
LJ-1200
28 KHz
1200 W
3 kW
600 x 400 x 300
72 L
LJ-1800
28 KHz
1800 W
4 kW
750 x 450 x 350
118 L
LJ-2400
28 KHz
2400 W
5 kW
900 x 500 x 400
180 L
LJ-3600
28 KHz
3600 W
8 kW
1000 x 600 x 450
270 L
LJ-5400
28 KHz
5400 W
10 kW
1200 x 700 x 500
420 L
LJ-6800
28 KHz
6800 W
12 kW
1400 x 800 x 550
616 L
Larger tanks and higher power ratings up to 24,000 W / 3,000 L are available upon request. Standard power supply: 380 V / 50 Hz three-phase; customization is available.
Applications
Typical applications
Review common workpieces, contamination types and process uses for this equipment.
01
Only Cleaning
For batch ultrasonic cleaning of machined, molded and precision components.
01
Wire-cut parts
Removes residual emulsion and metal debris after wire-cut EDM.
02
Tapped parts
Removes chips and oil from taps and drill bits.
03
Stamped parts
Removes drawing oil, rust-prevention oil and debris.
04
Polished parts
Removes polishing and lapping paste and restores metal luster.
05
Molds and blind holes
Removes carbon, rust, release agent and contamination in narrow recesses.
06
Automotive parts
Degreases and removes carbon from engine parts, carburetors and pistons.
07
Dental instruments
Cleans precision instruments such as burs, forceps and handpieces.
08
Circuit boards
Removes flux and rosin residue from PCBs.
09
Screens and glassware
Cleans blocked meshes, laboratory glassware and optical glass.
02
Cleaning with Filtration
For parts with oil or particle loading that benefit from continuous liquid filtration.
01
Plastic parts
Removes mold-release agent and oil from injection-molded parts.
02
Turned, milled and tapped parts
Removes cutting fluid and metal chips after machining.
03
Wire-cut parts
Removes emulsion fluid and metal debris after EDM wire cutting.
04
All types of molds
Removes carbon, rust and release agents to extend mold life.
05
Copper components
Removes oxidation, fingerprints and oil to restore metallic luster.
06
Aluminum parts
Removes drawing oil, cutting oil and stubborn grease.
07
Electric field purifiers
Removes accumulated dust and oil from electric-field components.
08
Glass products
Removes oil and stains from glass bottles and optical glass.
09
Stainless-steel parts
Removes stamping and rust-prevention oil for a clean, bright surface.
Configuration Options
Configure the system for your process
Tank dimensions, utilities, automation and process settings are finalized around the application requirements.
Only-cleaning or circulating-filtration configuration
Tank dimensions and ultrasonic power
Selectable frequency and power
Heating and timer settings
Power supply and custom capacity
Model range
LJ-1200 / 1800 / 2400 / 3600 / 5400 / 6800
Ultrasonic frequency
28 KHz
Capacity or line basis
72-616 L
Ultrasonic power
1200-6800 W
Construction
SUS304 standard configuration
Product Questions
Before selecting this equipment
Yes. Tank dimensions, basket loading, ultrasonic frequency, power, heating, filtration, handling and controls are reviewed for the part and process. Suitable for small machined parts and molds, automotive parts, electronics, glassware and batches with oil or particle loading.
Send part drawings or dimensions, material, maximum weight, contamination, required cleanliness, parts per load, daily output and available utilities.
Yes. Representative parts can be used to evaluate chemistry, cycle conditions, loading and inspection criteria before the final configuration is confirmed.
